Adhesive tape cutting machine
- Brand: ???LIDA
- Type: ???LD-1300B

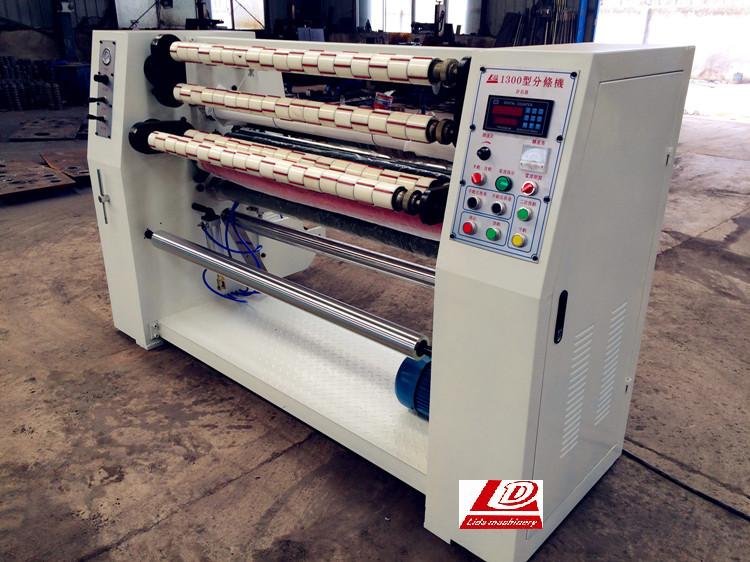

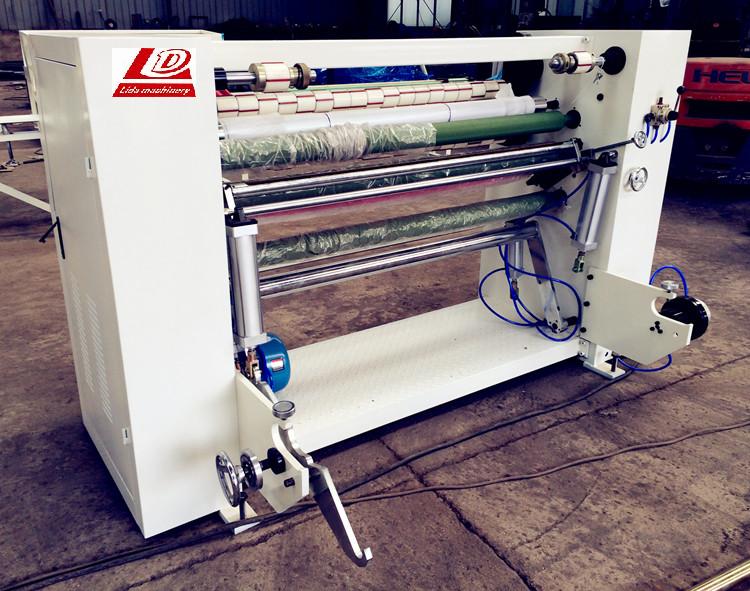

Four shafts Adhesive Tape Cutting Machine
It can cut BOPP tape roll to different length & size from 10mm to 1000mm and the final tape can be used for carton packing.
Details of the adhesive tape cutting machine:
Automatic Grade: Semi Automatic
Voltage: 380V, 460V
Power: 3KW
Speed: 180m/minute
Working width: 1300mm, 1600mm
Usage: BOPP tape roll, Masking tape roll cutting
Production time: 20days
After-sales Service Provided: Engineers available to service machinery overseas
Features:
1. Automatic consecutive 4-shaft changing:
when the rewinding operation is finished on one set of shafts, the machine will change automatically onto another set of shafts without any stop. It will have higher efficiency.
2.Three-step length counter: Giving accurate pre-setting of rewinding length.
3. Pneumatic brake: Brings the machine to an immediate halt when working at high speed because of inertia ,ensures excellent steady performance .
4. Automatic tension control
5. (Optional) Auto labeling and slitting stationery tape functions
6. (Optional)auto loading device for heavy jumbo roll

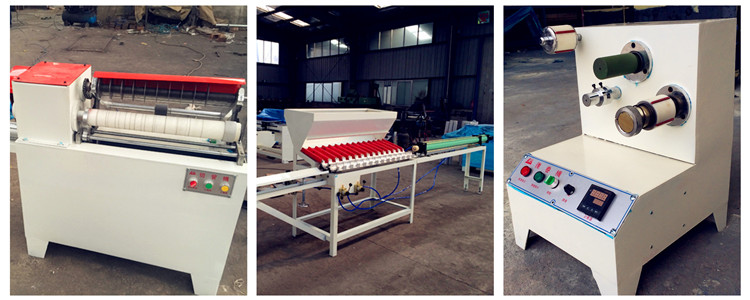

This LD-1300B adhesive tape cutting machine includes four parts: Slitting machine, core loader, core cutter and rewinder.
Paper tube loader: Set the paper core on the rewinding shafts.
Tape rewinder: Rewinding the imperfect tapes to good one.
Technical parameters of this adhesive tape cutting machine:
|
Specifications of LD-1300A tape roll cutting machine |
||||
|
L*W*H(m) |
2.27m*1.15m*1.38m |
|||
|
Power |
3phase,380v,50Hz,25KW |
|||
|
Practical coating speed |
0-150/min |
|||
|
Working width |
1300mm |
|||
|
power |
4kw |
|||
|
Max unwinding diameter |
700mm |
|||
|
Specifications of LD-L1300 auto core loader (Set the paper core on the rewinding shafts) |
||||
|
L*W*H(M) |
5.6m*0.9m*1.35m |
|||
|
Inner diameter of paper core |
3 inches |
|||
|
With 2 moulds, size custom-made |
||||
|
Specifications of LD-P1300 auto core cutter (Cutting long paper core to the right size you want) |
||||
|
L*W*H(M) |
1500mm*600mm*1150mm |
|||
|
Slitting width |
By mould control |
|||
|
Paper core diameter |
76.5 mm(3”) |
|||

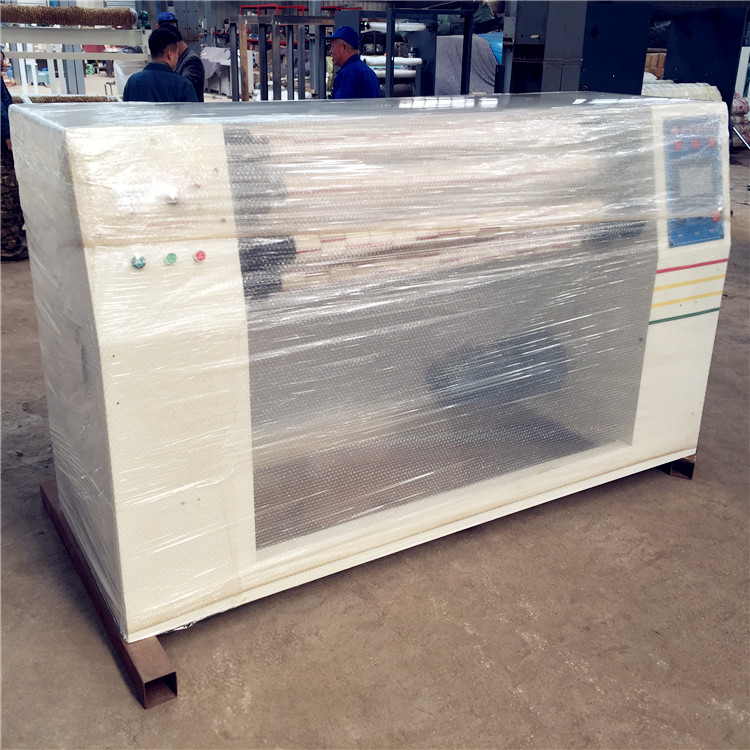

Packing:
Advantage：
Our product is stable anddurable, opeate easily, besides its wind darameter can be 210mm max , which is far beyond all other supliers'!
Processing Video
